Can Ends Food Safe Electrolytic Tin Plate TFS With Enhanced Rust Alkali Resistance
Food-Safe Electrolytic Tin Plate & TFS with Enhanced Rust & Alkali Resistance for Can Ends
What is Tinplate?
Tinplate (SPTE) is tin plated on both sides of the iron sheet, that is, cold rolled low carbon thin steel plate. It offers rust resistance, corrosion resistance, and is non-toxic. Mainly used for making metal packaging, including canned food, beverages, chemicals, medicine, sanitation products, coatings, paints, sprays, and cosmetic caps.
Specifications
| Product Name |
Food-Safe Electrolytic Tin Plate & TFS with Enhanced Rust & Alkali Resistance for Can Ends |
| Standard |
JIS, EN |
| Material |
MR SPCC |
| Grade |
Prime |
| Annealing |
BA/CA |
| Thickness |
0.16-3.0mm |
| Width |
600-1500mm |
| Temper |
T1, T2, T3, T4, T5, DR7, DR8, DR9, TH550, TH580, TH620, TH660 |
| Coating (g/m²) |
1.1/1, 2.0/2.0, 2.8/2.8, 2.8/5.6, 5.6/5.6, 8.4/8.4, 11.2/11.2, etc |
| Surface Finish |
Stone, Bright, Silver |
| Packaging |
Standard export packing or according to customer's requirements |
| Payment |
T/T or L/C or D/P |
Product Introduction
Tinplate (SPTE) is a common name for electroplated tin steel sheets, which refers to cold-rolled low-carbon steel sheets or strips coated with commercial pure tin on both sides. Tin mainly acts to prevent corrosion and rust. It combines the strength and formability of steel with the corrosion resistance, solderability and aesthetic appearance of tin in a material with corrosion resistance, non-toxicity, high strength and good ductility.
Tin-plate packaging has a wide range of coverage in the packaging industry because of its good sealing, preservation, light-proof, ruggedness and unique metal decoration charm. Because of its strong antioxidant properties, diverse styles and exquisite printing, tinplate packaging containers are popular with customers and widely used in food packaging, pharmaceutical packaging, commodity packaging, instrument packaging, and industrial packaging.
Mechanical Properties
| Temper Grade |
Hardness (HR30Tm) |
Yield Strength (MPa) |
| T-1 |
49±3 |
330 |
| T-2 |
53±3 |
350 |
| T-3 |
57±3 |
370 |
| T-4 |
61±3 |
415 |
| T-5 |
65±3 |
450 |
| T-6 |
70±3 |
530 |
| DR-7M |
71±5 |
520 |
| DR-8 |
73±5 |
550 |
| DR-8M |
73±5 |
580 |
| DR-9 |
76±5 |
620 |
| DR-9M |
77±5 |
660 |
| DR-10 |
80±5 |
690 |
Coating Weight
| Former Coating Designation |
Nominal Coating Weight (g/m²) |
Minimum Average Coating Weight (g/m²) |
| 10# |
1.1/1.1 |
0.9/0.9 |
| 20# |
2.2/2.2 |
1.8/1.8 |
| 25# |
2.8/2.8 |
2.5/2.5 |
| 50# |
5.6/5.6 |
5.2/5.2 |
| 75# |
8.4/8.4 |
7.8/7.8 |
| 100# |
11.2/11.2 |
10.1/10.1 |
| 25#/10# |
2.8/1.1 |
2.5/0.9 |
| 50#/10# |
5.6/1.1 |
5.2/0.9 |
| 75#/25# |
5.6/2.8 |
5.2/2.5 |
| 75#/50# |
8.4/2.8 |
7.8/2.5 |
| 75#/50# |
8.4/5.6 |
7.8/5.2 |
| 100#/25# |
11.2/2.8 |
10.1/2.5 |
| 100#/50# |
11.2/5.6 |
10.1/5.2 |
| 100#/75# |
11.2/8.4 |
10.1/7.8 |
| 125#/50# |
15.1/5.6 |
13.9/5.2 |
Applications
Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.

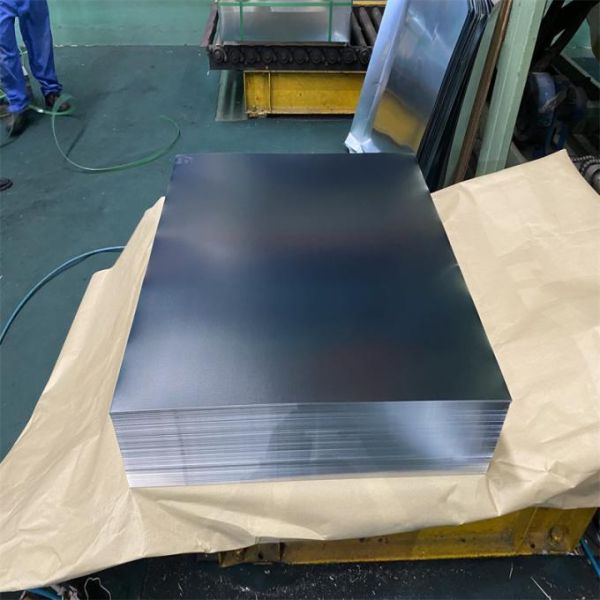

Product Images
Frequently Asked Questions
Q1. What are your company's main products?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. How do you control quality?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available, and we also have ISO and SGS certifications.
Q3. What are the advantages of your company?
A3: We have many professionals and technical personnel, more competitive prices, and better after-sales service than other stainless steel companies.
Q4. How many countries have you exported to?
A4: Exported to more than 50 countries, mainly from America, UK, Kuwait, Egypt, Turkey, Jordan, India, etc.
Q5. Can you provide samples?
A5: We can provide small samples in stock for free. Customized samples will take about 5-7 days.
